4000m³/h Water Flow Mitsubishi River Dredger
Key Specifications
| Attribute | Value |
| Total Installed Power | Up To 1662kW |
| Diesel Power | Cummins/Mitsubishi |
| Discharge Pipe Diameter | Up To 550mm |
| Water Flow | 4000m³/h |
| Working Capacity | 800m³/h |
| Cutter Head Diameter | 1800mm |
| Hydraulic System | Rexroth |
| Application | River Dredging |
Product Overview
Our 4000m³/h River Dredger features a state-of-the-art Rexroth Hydraulic System, renowned for reliable and precise control during dredging operations. This dismantle-type, non-self-propelled cutter suction dredger is engineered for optimal performance in inland waters and coastal areas.
Key Features:
- Flexible pump options: Single-walled or Double-walled Dredging Pumps
- Modular hull design with five pontoons for easy transport and assembly
- Diesel engine or electric motor power options
- Harbor generator included
- Designed for soil types II-IV including fine sand, clay, silt, and coarse sand
Technical Specifications
| Dredging Pump Discharge Pipe Diameter | 550mm |
| Head | 65m |
| Max. Working Capacity | 900m³/h |
| Discharge Distance | 3000m |
| Dredging Depth | 14m |
| Diesel Engine | 1306KW Cummins |
| Hydraulic Auxiliary Engine | 336KW Cummins |
| Total Power | 1662KW |
| Hull Dimensions (LOA×W×D) | 42m × 7.5m × 2.0m |
Applications
This versatile dredger is ideal for:
- River channel maintenance and dredging
- Canal and water storage area dredging
- Sediment removal in lakes and reservoirs
- Waterway construction projects
Customization Options
Model: JMD550
Price Range: $800,000 - $1,300,000
Delivery Time: 100 days
Custom configurations available:
- Anchor boom or spud carriage installation
- Hydraulic spud flat down system
- Additional underwater dredging pump (20-30m depth)
- Booster station for extended discharge distance
Overseas Services
On-site installation guidance by experienced engineers
Comprehensive operator training programs
Technical support and maintenance services
Performance testing and system debugging
Product Gallery
Manufacturing Facility
Production Workshop
Operation in Bangladesh
River Dredging Operation

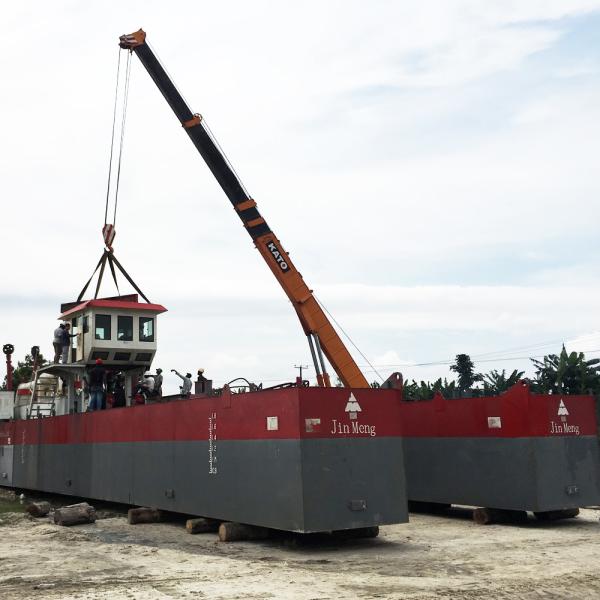

Installation Process
Operator Training
